J - Anbohr-Schieber, Anbohr-Schellen

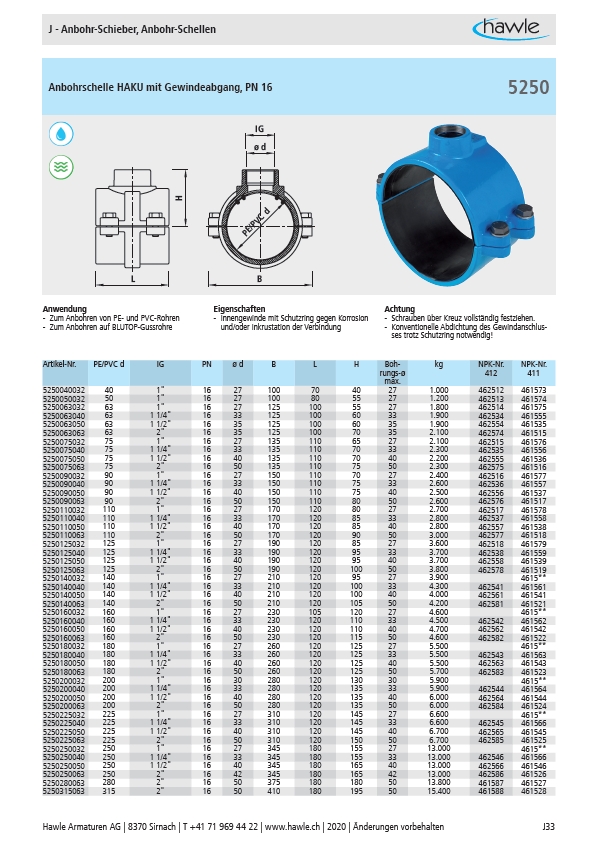

Anbohrschelle HAKU mit Gewindeabgang, PN 16
IG
ø d
PE/PVC d
H
L B
Anwendung Eigenschaften Achtung
- Zum Anbohren von PE- und PVC-Rohren
- Innengewinde mit Schutzring gegen Korrosion
- Zum Anbohren auf BLUTOP-Gussrohre
und/oder Inkrustation der Verbindung
5250
- Schrauben über Kreuz vollständig festziehen.
- Konventionelle Abdichtung des Gewindanschlusses
trotz Schutzring notwendig!
Artikel-Nr. PE/PVC d IG PN ø d B L H Bohrungs
ø
max.
kg NPK-Nr.
412
NPK-Nr.
411
5250040032 40 1" 16 27 100 70 40 27 1.000 462512 461573
5250050032 50 1" 16 27 100 80 55 27 1.200 462513 461574
5250063032 63 1" 16 27 125 100 55 27 1.800 462514 461575
5250063040 63 1 1/4" 16 33 125 100 60 33 1.900 462534 461555
5250063050 63 1 1/2" 16 35 125 100 60 35 1.900 462554 461535
5250063063 63 2" 16 35 125 100 70 35 2.100 462574 461515
5250075032 75 1" 16 27 135 110 65 27 2.100 462515 461576
5250075040 75 1 1/4" 16 33 135 110 70 33 2.300 462535 461556
5250075050 75 1 1/2" 16 40 135 110 70 40 2.200 462555 461536
5250075063 75 2" 16 50 135 110 75 50 2.300 462575 461516
5250090032 90 1" 16 27 150 110 70 27 2.400 462516 461577
5250090040 90 1 1/4" 16 33 150 110 75 33 2.600 462536 461557
5250090050 90 1 1/2" 16 40 150 110 75 40 2.500 462556 461537
5250090063 90 2" 16 50 150 110 80 50 2.600 462576 461517
5250110032 110 1" 16 27 170 120 80 27 2.700 462517 461578
5250110040 110 1 1/4" 16 33 170 120 85 33 2.800 462537 461558
5250110050 110 1 1/2" 16 40 170 120 85 40 2.800 462557 461538
5250110063 110 2" 16 50 170 120 90 50 3.000 462577 461518
5250125032 125 1" 16 27 190 120 85 27 3.600 462518 461579
5250125040 125 1 1/4" 16 33 190 120 95 33 3.700 462538 461559
5250125050 125 1 1/2" 16 40 190 120 95 40 3.700 462558 461539
5250125063 125 2" 16 50 190 120 100 50 3.800 462578 461519
5250140032 140 1" 16 27 210 120 95 27 3.900 4615**
5250140040 140 1 1/4" 16 33 210 120 100 33 4.300 462541 461561
5250140050 140 1 1/2" 16 40 210 120 100 40 4.000 462561 461541
5250140063 140 2" 16 50 210 120 105 50 4.200 462581 461521
5250160032 160 1" 16 27 230 105 120 27 4.600 4615**
5250160040 160 1 1/4" 16 33 230 120 110 33 4.500 462542 461562
5250160050 160 1 1/2" 16 40 230 120 110 40 4.700 462562 461542
5250160063 160 2" 16 50 230 120 115 50 4.600 462582 461522
5250180032 180 1" 16 27 260 120 125 27 5.500 4615**
5250180040 180 1 1/4" 16 33 260 120 125 33 5.500 462543 461563
5250180050 180 1 1/2" 16 40 260 120 125 40 5.500 462563 461543
5250180063 180 2" 16 50 260 120 125 50 5.700 462583 461523
5250200032 200 1" 16 30 280 120 130 30 5.900 4615**
5250200040 200 1 1/4" 16 33 280 120 135 33 5.900 462544 461564
5250200050 200 1 1/2" 16 40 280 120 135 40 6.000 462564 461544
5250200063 200 2" 16 50 280 120 135 50 6.000 462584 461524
5250225032 225 1" 16 27 310 120 145 27 6.600 4615**
5250225040 225 1 1/4" 16 33 310 120 145 33 6.600 462545 461566
5250225050 225 1 1/2" 16 40 310 120 145 40 6.700 462565 461545
5250225063 225 2" 16 50 310 120 150 50 6.700 462585 461525
5250250032 250 1" 16 27 345 180 155 27 13.000 4615**
5250250040 250 1 1/4" 16 33 345 180 155 33 13.000 462546 461566
5250250050 250 1 1/2" 16 40 345 180 165 40 13.000 462566 461546
5250250063 250 2" 16 42 345 180 165 42 13.000 462586 461526
5250280063 280 2" 16 50 375 180 180 50 13.800 461587 461527
5250315063 315 2" 16 50 410 180 195 50 15.400 461588 461528
