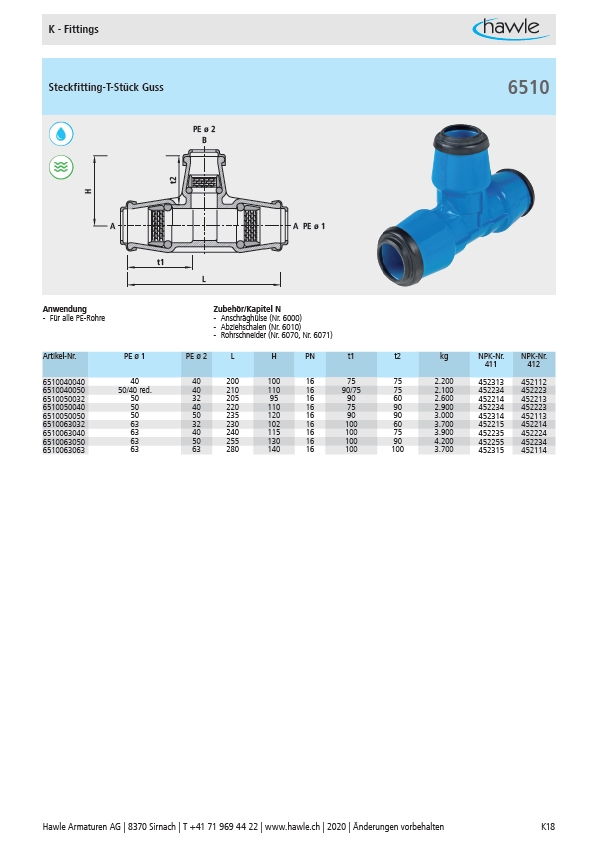

K - Fittings
Steckfitting-T-Stück Guss
t2
A A PE ø 1
t1
PE ø 2
B
L
H
Anwendung Zubehör/Kapitel N
- Für alle PE-Rohre - Anschräghülse (Nr. 6000)
- Abziehschalen (Nr. 6010)
- Rohrschneider (Nr. 6070, Nr. 6071)
6510
Artikel-Nr. PE ø 1 PE ø 2 L H PN t1 t2 kg NPK-Nr.
411
NPK-Nr.
412
6510040040 40 40 200 100 16 75 75 2.200 452313 452112
6510040050 50/40 red. 40 210 110 16 90/75 75 2.100 452234 452223
6510050032 50 32 205 95 16 90 60 2.600 452214 452213
6510050040 50 40 220 110 16 75 90 2.900 452234 452223
6510050050 50 50 235 120 16 90 90 3.000 452314 452113
6510063032 63 32 230 102 16 100 60 3.700 452215 452214
6510063040 63 40 240 115 16 100 75 3.900 452235 452224
6510063050 63 50 255 130 16 100 90 4.200 452255 452234
6510063063 63 63 280 140 16 100 100 3.700 452315 452114
